Alsalam Alaykom

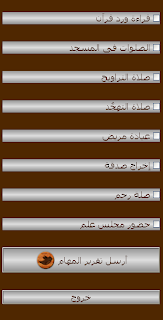

here is the Ramadan Application i posted about before

You can download it from here

AhlanRamadan setup.rar

Tweet

Tweet

Wait for Ramadan App soon in Shaa Allah

اللهم بلغنا رمضان

Tweet

Tweet

Keep Energy Pumping

Tweet

Tweet

in your constructor put this line:

QTextCodec::setCodecForCStrings(QTextCodec::codecForName("UTF-8"));
// i tried it with a QLabel and it worked

tada , you now have arabic support in your User interface

Tweet

Tweet

After applying what i said in this post , some problems occurred
1.arm-none-linux-gnueabi: command not found
solution:
 -in terminal:

gedit .bashrc

 -in  .bashrc make sure that those line are there , if not there add them:

export PATH=/usr/local/arm/4.3.2/bin:$PATH

export PATH=/usr/local/arm/4.3.2/arm-none-linux-gnueabi/bin:$PATH

save .bashrc and exit all the open linux terminals.

then in qt-everywhere directoy browse to the mkspecs/qws/linux-arm-g++/ then edit the qmake.conf
replace all the contents of this file with the following:

1. #
2. # qmake configuration for building with arm-linux-g++
3. #
4.
5. include(../../common/g++.conf)
6. include(../../common/linux.conf)
7. include(../../common/qws.conf)
8.
9.
10.
11. # modifications to g++.conf
12. QMAKE_CC                = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-gcc
13. -msoft-float -D__GCC_FLOAT_NOT_NEEDED -march=armv4t -mtune=arm920t -O0
14.
15. QMAKE_CXX               = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-g++
16. -msoft-float -D__GCC_FLOAT_NOT_NEEDED -march=armv4t -mtune=arm920t -O0
17.
18. QMAKE_LINK              = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-g++
19. -msoft-float -D__GCC_FLOAT_NOT_NEEDED -march=armv4t -mtune=arm920t -O0
20.
21. QMAKE_LINK_SHLIB        = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-g++
22. -msoft-float -D__GCC_FLOAT_NOT_NEEDED -march=armv4t -mtune=arm920t -O0
23.
24.
25.
26. # modifications to linux.conf
27. QMAKE_AR                = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-ar cqs
28. QMAKE_OBJCOPY           = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-objcopy
29. QMAKE_STRIP             = /usr/local/arm/4.3.2/bin/arm-none-linux-gnueabi-strip
30.
31.
32.
33. QMAKE_CFLAGS    += -msoft-float -D__GCC_FLOAT_NOT_NEEDED -march=armv4t
34. -mtune=arm920t
35. QMAKE_CXXFLAGS    += -msoft-float -D__GCC_FLOAT_NOT_NEEDED -march=armv4t
36. -mtune=arm920t
37.
38.
39. load(qt_config)

then save the file and close it.
finally browse to the Qt-everywhere directory in the terminal and  configure with these options

./configure -release -embedded arm -xplatform qws/linux-arm-g++ -prefix /usr/local/Qt-4.6.2_arm -little-endian -no-webkit -no-qt3support -no-cups -no-largefile -nomake examples -optimized-qmake -no-openssl -nomake tools

then make .. then make install .. tada .. you'll find Qt-everywhere's output folder in /usr/local/ under the name

Qt-4.6.2_arm

good luck with your steps
--------------------------------------------------------------------------------------------
the code above was formatted using this tool
it seems to be great online tool

Tweet

Tweet

*note: this entry is a complementary entry to this one
1.Download the Qt libraries folder (The one generated after building Qt-everywhere for Arm) to the Mini 2440 Board to /usr/local/

2.Build the application using qmake (special version of qmake for arm processors) that you can find in the Qt folder in step #1 in the /bin directory.

3.Set environment variables in Qtopia

export QTDIR=/usr/local/Qt-4.6.2_arm

export LD_LIBRARY_PATH=/usr/local/Qt-4.6.2_arm/lib

in case of systems other than Qtopia , you have to export the following

export TSLIB_TSEVENTTYPE=INPUT

export TSLIB_CONSOLEDEVICE=none

export TSLIB_FBDEVICE=/dev/fb0

export TSLIB_TSDEVICE=/usr/input/ts

export TSLIB_CALIBFILE=/usr/etc/pointercal

export TSLIB_CONFFILE=/usr/etc/ts.conf

export TSLIB_PLUGINDIR=/usr/lib/ts

export LD_LIBRARY_PATH=/usr/local/Qt/lib

export QTDIR=/usr/local/Qt

export QWS_MOUSE_PROTO=tslib:/usr/input/ts

        export QWS_DISPLAY=LinuxFB:mmWidth=240:mmHeight=320
 4.Download your application's executable generated form step #2 to the board on a known directory
5.On the board browse to the directory in step 4 and type the name of the application followed by -qws
6.pray for the application to run :D

this page was very helpful
http://www.sereno-online.com/site/2010/05/01/qt-4-6-2-installation-procedure-for-friendlyarm-mini-2440-board/
